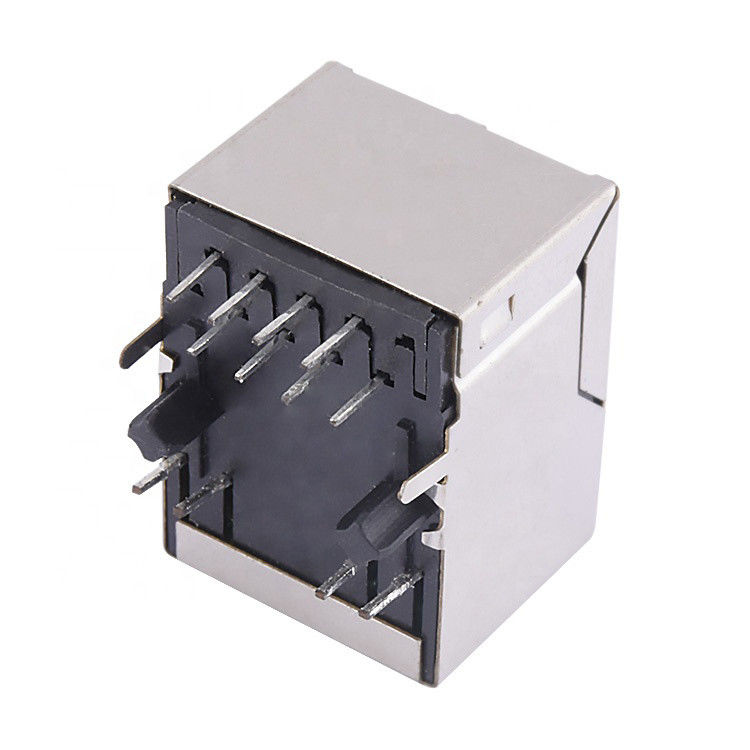

Through hole Mount RJ45 Modular Jack with Insulation Resistance 1000 Megohms Min at 500 Vdc Cross Part Number ARJM11D7 811 NN CW4 Data Connector

The RJ45 Modular Jack is a high-quality, reliable connector designed to meet the demanding needs of modern networking applications. This product is engineered with precision to ensure seamless data transmission and robust physical performance, making it an essential component for Ethernet and other communication systems.

Featuring a shield material made from 0.2mm brass, the RJ45 Modular Jack provides excellent durability and effective shielding against electromagnetic interference, ensuring stable and secure signal integrity in various environments.

One of the standout features is its integrated magnetic 1000 Base-T capability, which enhances performance by providing noise suppression and improved signal quality for high-speed data transmission up to 1000 Mbps.

Designed with a through-hole mount, the RJ45 Modular Jack offers superior mechanical stability when soldered onto printed circuit boards (PCBs), especially important in environments subject to vibration or mechanical stress.

The compact dimensions (21.25mm × 15.90mm × 13.40mm) make it suitable for a wide range of applications, while its wide operating temperature range (-40°C to 85°C) allows reliable performance in extreme conditions.

The RJ45 Modular Jack is widely used in various networking applications including network interface cards, switches, routers, and telecommunications equipment. Its compact size and through-hole mounting make it ideal for space-constrained applications while ensuring reliable connections.

Typical applications include:

• Office networks and home networking setups
• Industrial communication systems
• Embedded systems and industrial control devices
• Telecommunications infrastructure (patch panels, distribution frames)
• Network expansions and upgrades

The connector's standardized design ensures compatibility with a wide range of RJ45 cables and connectors, making it suitable for both simple home setups and complex industrial networks.
